SG-210SCBA車載專用晶振X1G004591A02000特別適用于遙控無匙門禁

來源：http://m.arucbtxo.cn 作者：億金電子 2022年10月09
針對各種車載電子設備對石英晶振在高溫、抗振動等方面的更高要求，愛普生可以提供全面的符合AEC-Q200/100技術標準的汽車用車規晶振。

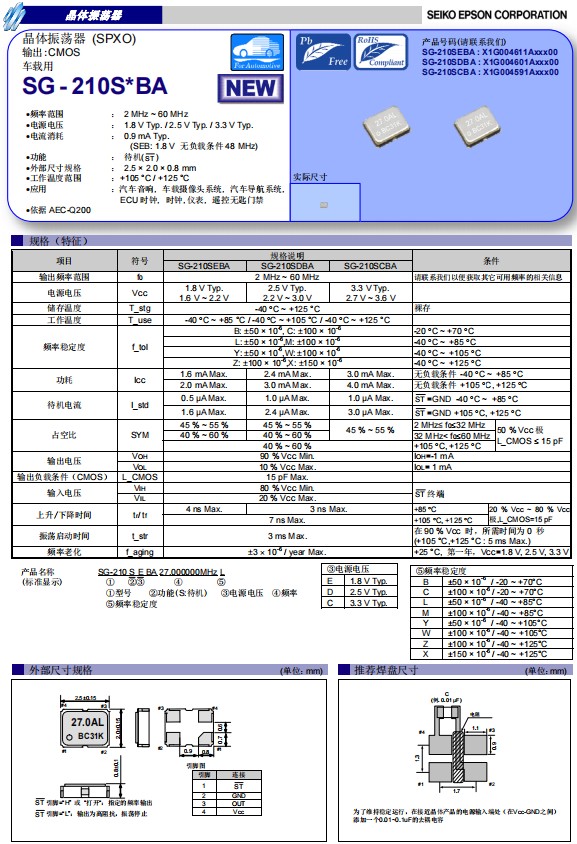

日本愛普生推出車載專用晶振SG-210SCBA，是一款CMOS輸出石英晶體振蕩器，頻率范圍:2MHz至60MHz，電源電壓(典型值):1.8V/2.5V/3.3V可選，工作溫度范圍:-40℃至+85℃/+105℃/+125℃，小體積尺寸:2.5x2.0x0.9mm，四腳貼片晶振，緊湊的結構和小體積使產品適用于微空間的電路設計。SG-210SCBA有源晶振具有超小型，輕薄型，耐高溫，耐熱、耐振、耐沖擊等優良的耐環境特性。應用于：汽車音響，車載攝像頭系統，汽車導航系統，汽車空調系統，ECU時鐘，時鐘，儀表，遙控無匙門禁等，符合AEC-Q200標準，是汽車電子應用中的理想選擇。
SG-210SCBA車載專用晶振X1G004591A02000特別適用于遙控無匙門禁,X1G004591A08200,有源晶振
產品編碼 型號 頻率 尺寸 輸出波 電源電壓 工作溫度
X1G004591A00100 SG-210SCBA 27.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A00200 SG-210SCBA 49.090000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A00300 SG-210SCBA 40.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A00400 SG-210SCBA 8.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A00600 SG-210SCBA 37.007000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A00700 SG-210SCBA 27.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A00900 SG-210SCBA 20.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A01000 SG-210SCBA 33.333000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A01300 SG-210SCBA 25.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A01700 SG-210SCBA 4.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A02000 SG-210SCBA 20.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A02100 SG-210SCBA 33.333300MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A02300 SG-210SCBA 16.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A02400 SG-210SCBA 25.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A02500 SG-210SCBA 25.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A02700 SG-210SCBA 33.300000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A02800 SG-210SCBA 48.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A03100 SG-210SCBA 25.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A03300 SG-210SCBA 10.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A03600 SG-210SCBA 33.333300MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A03700 SG-210SCBA 14.745600MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A03800 SG-210SCBA 37.007000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A04000 SG-210SCBA 24.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A04100 SG-210SCBA 16.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A04900 SG-210SCBA 24.576000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A05000 SG-210SCBA 22.579200MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A05100 SG-210SCBA 14.745600MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A05200 SG-210SCBA 24.576000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A05800 SG-210SCBA 48.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C

X1G004591A05900 SG-210SCBA 10.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A06700 SG-210SCBA 27.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A06800 SG-210SCBA 12.288000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A07200 SG-210SCBA 8.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A07300 SG-210SCBA 30.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A07700 SG-210SCBA 7.904000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A07800 SG-210SCBA 12.288000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A08100 SG-210SCBA 40.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A08200 SG-210SCBA 16.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A08400 SG-210SCBA 24.576000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A08500 SG-210SCBA 16.666600MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A08600 SG-210SCBA 19.200000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A08700 SG-210SCBA 12.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A08800 SG-210SCBA 45.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A08900 SG-210SCBA 40.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A09000 SG-210SCBA 13.333000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A09100 SG-210SCBA 11.289600MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A09200 SG-210SCBA 12.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A09400 SG-210SCBA 6.780000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A09500 SG-210SCBA 24.545452MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A09700 SG-210SCBA 48.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A09800 SG-210SCBA 11.250000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A09900 SG-210SCBA 12.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A10000 SG-210SCBA 16.666600MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A10100 SG-210SCBA 33.330000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A10200 SG-210SCBA 10.240000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A10400 SG-210SCBA 24.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A10500 SG-210SCBA 33.333000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A10600 SG-210SCBA 11.289600MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A10900 SG-210SCBA 6.144000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 85°C
X1G004591A11000 SG-210SCBA 3.579000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A11100 SG-210SCBA 49.500000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A11400 SG-210SCBA 26.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A11500 SG-210SCBA 33.330000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
X1G004591A11800 SG-210SCBA 6.144000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 105°C
X1G004591A11900 SG-210SCBA 4.000000MHz 2.50x2.00x0.90mm CMOS 2.700 to 3.600V -40 to 125°C
SG-210SCBA車載專用晶振X1G004591A02000特別適用于遙控無匙門禁,X1G004591A08200,有源晶振
汽車電子最重要的作用是提高汽車的安全性，舒適性，經濟性和娛樂性。用傳感器，微處理器MPU，執行器，數十甚至上百個電子元器件及其零部件組成的電控系統。車載晶振，在汽車方面使用到了大大小小的各種石英晶振，各種類型以及封裝尺寸，無一不在給各項汽車產品帶去性能。我們首先知道的是在使用到汽車上面的貼片晶振都是需要具備高性能,耐高溫等各項要求，才能保證能正常發揮性能。
