首頁晶振行業動態 時鐘振蕩器CWX823-014.31818M物聯網專用晶振
時鐘振蕩器CWX823-014.31818M物聯網專用晶振
來源：http://m.arucbtxo.cn 作者：億金電子 2023年04月25
Connorwinfield公司為順應廣大客戶群體的需求，已研發生產出含有HCMOS輸出，LVPECL輸出以及LVDS輸出有源晶振，并且電壓可為3.3V或者5V，以商業或者工業溫度范圍展示在大家面前。壓控晶體振蕩器已成為鎖相環應用的質量，緊密容差，低抖動和高頻性能的基準。VCXO主要使用高頻基模晶體，與頻率合成相比，這種設計可以產生最佳的相位噪聲和抖動性能。Connorwinfield晶振以其專有的“倒置臺面”工藝技術生產晶體的能力而聞名，可以提供極高頻率的基模諧振器。在放寬抖動要求的情況下，康納溫菲爾德提供基于頻率合成集成電路設計的低成本模型其頻率達到1.5GHZ并提供非常好的抖動性能?？梢蕴峁┒喾N封裝尺寸選項和性能特征的解決方案，使期能夠有競爭力的滿足客戶可能擁有的任何應用要求。時鐘振蕩器CWX823-014.31818M物聯網專用晶振,CWX823-020.0M,石英貼片晶振

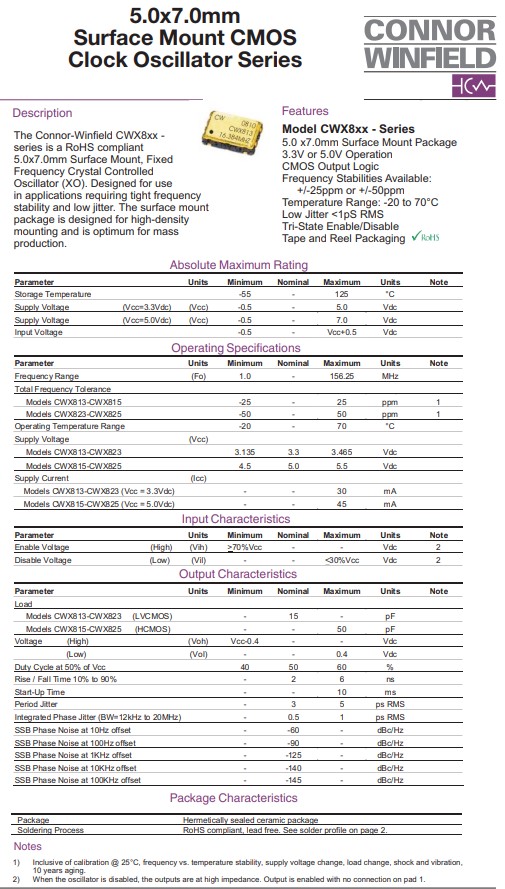

時鐘振蕩器CWX823-014.31818M物聯網專用晶振,CWX823-020.0M,石英貼片晶振，Connorwinfield康納溫菲爾德晶振CWX823，是一款小體積晶振尺寸7.0x5.0mm密封陶瓷封裝，時鐘晶體振蕩器，四腳貼片晶振，石英晶體振蕩器，有源晶振，符合RoHS標準5.0x7.0mm毫米表面貼裝，固定頻率晶體控制振蕩器(XO)。為使用而設計在要求嚴格頻率的應用中穩定性和低抖動。表面貼裝 封裝設計用于高密度安裝，是質量的最佳選擇生產，符合RoHS，無鉛。CWX8xx系列型號5.0x7.0毫米表貼封裝，3.3V或5.0V工作電壓，CMOS輸出邏輯，可用的頻率穩定性，低抖動< 1pS RMS，三態使能/禁用 膠帶和卷軸包裝 +/-25ppm或+/-50ppm，溫度范圍：-20至70攝氏度。被廣泛用于通訊設備，無線網絡，藍牙模塊，汽車電子，GPS定位系統，導航儀，醫療設備，數碼電子，物聯網等應用.
| 原廠代碼 | 品牌 | 型號 | 頻率 | 工作溫度 | 包裝/封裝 |
| CWX823-012.0M | ConnorWinfield | CWX823 | 12MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-024.0M | ConnorWinfield | CWX823 | 24MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-050.0M | ConnorWinfield | CWX823 | 50MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-032.768M | 康納溫菲爾德晶振 | CWX823 | 32.768MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-018.432M | ConnorWinfield | CWX823 | 18.432MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-049.152M | ConnorWinfield | CWX823 | 49.152MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-016.0M | ConnorWinfield | CWX823 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-012.288M | ConnorWinfield | CWX823 | 12.288MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-020.0M | ConnorWinfield | CWX823 | 20MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-027.0M | ConnorWinfield | CWX823 | 27MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-033.333M | ConnorWinfield | CWX823 | 33.333MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-100.0M | ConnorWinfield | CWX823 | 100MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-001.544M | ConnorWinfield | CWX823 | 1.544MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-040.0M | ConnorWinfield | CWX823 | 40MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-033.0M | ConnorWinfield | CWX823 | 33MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-004.0M | ConnorWinfield | CWX823 | 4MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-025.0M | ConnorWinfield | CWX823 | 25MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-001.8432M | ConnorWinfield | CWX823 | 1.8432MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-064.0M | ConnorWinfield | CWX823 | 64MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-125.0M | ConnorWinfield | CWX823 | 125MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-156.25M | ConnorWinfield | CWX823 | 156.25MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-010.0M | ConnorWinfield | CWX823 | 10MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-029.4912M | ConnorWinfield | CWX823 | 29.4912MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-060.0M | ConnorWinfield | CWX823 | 60MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-024.576M | ConnorWinfield | CWX823 | 24.576MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-008.0M | 進口貼片晶振 | CWX823 | 8MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-007.3728M | ConnorWinfield | CWX823 | 7.3728MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-066.6666M | ConnorWinfield | CWX823 | 66.6666MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-032.0M | ConnorWinfield | CWX823 | 32MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-080.0M | ConnorWinfield | CWX823 | 80MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-016.384M | ConnorWinfield | CWX823 | 16.384MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-030.0M | ConnorWinfield | CWX823 | 30MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-044.736M | ConnorWinfield | CWX823 | 44.736MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-003.6864M | ConnorWinfield | CWX823 | 3.6864MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-014.31818M | ConnorWinfield | CWX823 | 14.31818MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-015.36M | ConnorWinfield | CWX823 | 15.36MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-019.44M | ConnorWinfield | CWX823 | 19.44MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-020.48M | ConnorWinfield | CWX823 | 20.48MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-045.0M | ConnorWinfield | CWX823 | 45MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-072.0M | ConnorWinfield | CWX823 | 72MHz | -20°C ~ 70°C | 4-SMD, No Lead |
