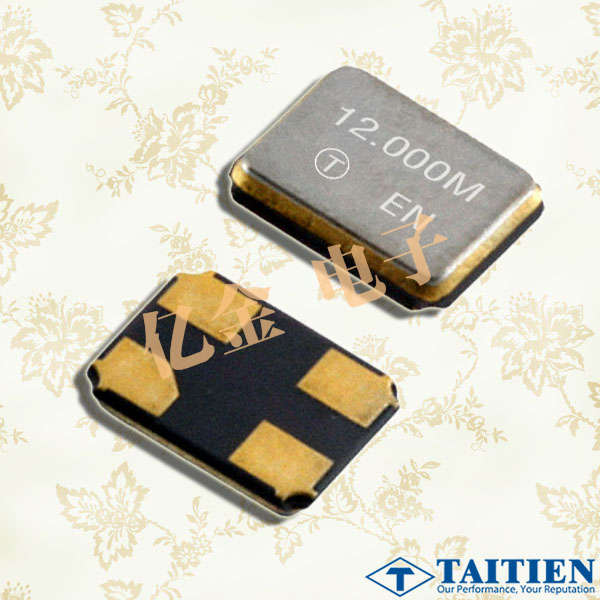

XYAEECNANF-50.000000 50MHz 30PPM 8PF 2520 -20~70℃
- 頻率：50MHz
- 尺寸：2520
- 應 用： XYAEECNANF-50.00000050MHz30PPM8PF2520-20~70℃，臺灣泰藝電子，典型的2.5x2.0x0.45mm，超薄陶瓷包裝。8mm寬的膠帶和卷軸包裝，用于自動組裝。緊密公差10ppm可用。典型的應用程序-藍牙，移動電話，無線局域網。辦公室...
-
-
.jpg)
.jpg)

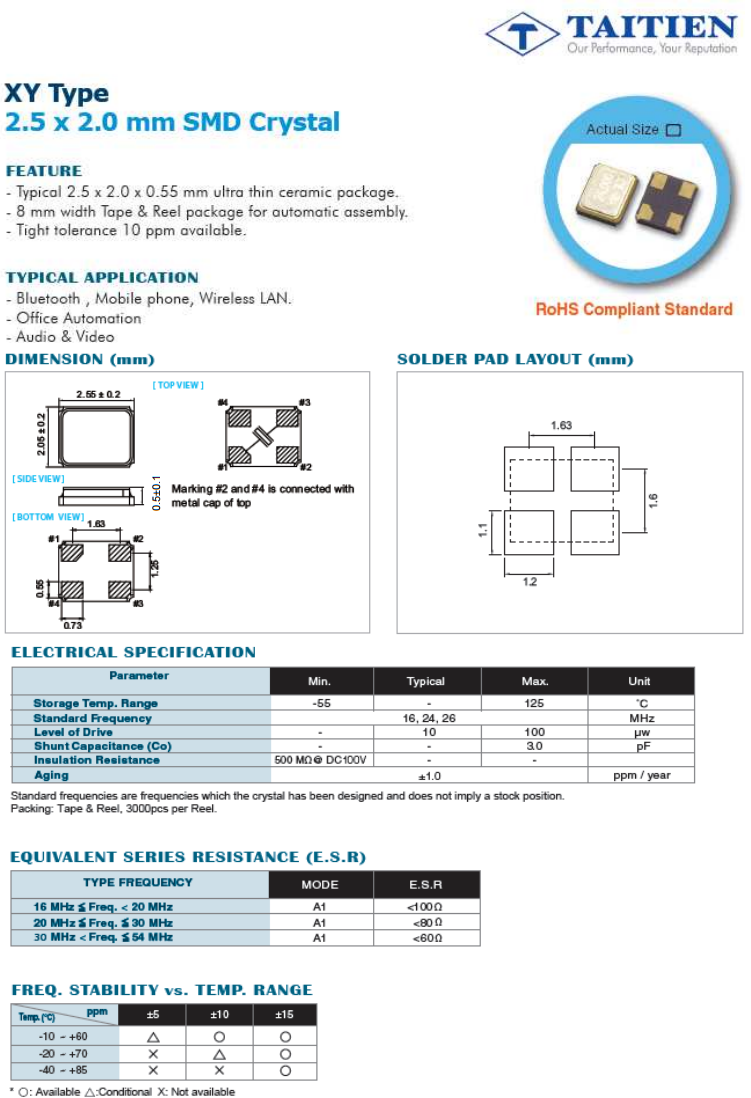

XYAEECNANF-50.000000 50MHz 30PPM 8PF 2520 -20~70℃，臺灣泰藝電子，典型的2.5 x 2.0 x 0.45 mm，超薄陶瓷包裝。 8 mm寬的膠帶和卷軸包裝，用于自動組裝。緊密公差10 ppm可用。典型的應用程序-藍牙，移動電話，無線局域網。辦公室自動化，音頻和視頻。
XYAEECNANF-50.000000 50MHz 30PPM 8PF 2520 -20~70℃
| 參數 | 最小值 | 典型的 | 最大值 | 符號 |
| 儲存溫度 | --40 | - | 125 | |
| 標準頻率 | 16 , 24, 26, 40 | MHz | ||
| 驅動電平 | - | 10 | 200 | µw |
| 并聯電阻 | - | - | 3.0 | pF |
| 絕緣電阻 | 500 M?@ DC100V | - | - | |
| 老化 | ±1.0 to ± 3.0 | ppm / year | ||
.jpg)
XYAEECNANF-50.000000 50MHz 30PPM 8PF 2520 -20~70℃
| TAITIEN原廠編碼 | 生產廠家 | 型號 | 頻率 | 頻率穩定度 | 頻率偏差 | 負載電容 |
| XYIGGLNANF-16.000000 | Taitien | XY | 16MHz | ±50ppm | ±50ppm | 30pF |
| XYIGGLNANF-16.000000 | Taitien | XY | 16MHz | ±50ppm | ±50ppm | 30pF |
| XYIGGLNANF-16.000000 | Taitien | XY | 16MHz | ±50ppm | ±50ppm | 30pF |
| XYCBBCNANF-16.000000 | Taitien | XY | 16MHz | ±10ppm | ±10ppm | 10pF |
| XYCBBCNANF-16.000000 | Taitien | XY | 16MHz | ±10ppm | ±10ppm | 10pF |
| XYCBBCNANF-16.000000 | Taitien | XY | 16MHz | ±10ppm | ±10ppm | 10pF |
| XYCBBCNANF-26.000000 | Taitien | XY | 26MHz | ±10ppm | ±10ppm | 10pF |
| XYCBBCNANF-26.000000 | Taitien | XY | 26MHz | ±10ppm | ±10ppm | 10pF |
| XYCBBCNANF-26.000000 | Taitien | XY | 26MHz | ±10ppm | ±10ppm | 10pF |
| XYCCCCNANF-19.200000 | Taitien | XY | 19.2MHz | ±20ppm | ±20ppm | 10pF |
| XYCCCCNANF-19.200000 | Taitien | XY | 19.2MHz | ±20ppm | ±20ppm | 10pF |
| XYCCCCNANF-19.200000 | Taitien | XY | 19.2MHz | ±20ppm | ±20ppm | 10pF |
| XYCEECNANF-27.120000 | Taitien | XY | 27.12MHz | ±30ppm | ±30ppm | 10pF |
| XYCEECNANF-27.120000 | Taitien | XY | 27.12MHz | ±30ppm | ±30ppm | 10pF |
| XYCEECNANF-27.120000 | Taitien | XY | 27.12MHz | ±30ppm | ±30ppm | 10pF |
| XYCEECNANF-32.000000 | Taitien | XY | 32MHz | ±30ppm | ±30ppm | 10pF |
| XYCEECNANF-32.000000 | Taitien | XY | 32MHz | ±30ppm | ±30ppm | 10pF |
| XYCEECNANF-32.000000 | Taitien | XY | 32MHz | ±30ppm | ±30ppm | 10pF |
| XYHEECNANF-30.000000 | Taitien | XY | 30MHz | ±30ppm | ±30ppm | 20pF |
| XYHEECNANF-30.000000 | Taitien | XY | 30MHz | ±30ppm | ±30ppm | 20pF |
| XYHEECNANF-30.000000 | Taitien | XY | 30MHz | ±30ppm | ±30ppm | 20pF |
| XYLEEJNANF-27.120000 | Taitien | XY | 27.12MHz | ±30ppm | ±30ppm | 6pF |
| XYLEEJNANF-27.120000 | Taitien | XY | 27.12MHz | ±30ppm | ±30ppm | 6pF |
| XYLEEJNANF-27.120000 | Taitien | XY | 27.12MHz | ±30ppm | ±30ppm | 6pF |
| XYABBCNANF-24.576000 | Taitien | XY | 24.576MHz | ±10ppm | ±10ppm | 8pF |
| XYABBCNANF-24.576000 | Taitien | XY | 24.576MHz | ±10ppm | ±10ppm | 8pF |
| XYABBCNANF-24.576000 | Taitien | XY | 24.576MHz | ±10ppm | ±10ppm | 8pF |
| XYAEECNANF-26.000000 | Taitien | XY | 26MHz | ±30ppm | ±30ppm | 8pF |
| XYAEECNANF-26.000000 | Taitien | XY | 26MHz | ±30ppm | ±30ppm | 8pF |
| XYAEECNANF-26.000000 | Taitien | XY | 26MHz | ±30ppm | ±30ppm | 8pF |
| XYAEECNANF-27.000000 | Taitien | XY | 27MHz | ±30ppm | ±30ppm | 8pF |
| XYAEECNANF-27.000000 | Taitien | XY | 27MHz | ±30ppm | ±30ppm | 8pF |
| XYAEECNANF-27.000000 | Taitien | XY | 27MHz | ±30ppm | ±30ppm | 8pF |
| XYAEECNANF-27.120000 | Taitien | XY | 27.12MHz | ±30ppm | ±30ppm | 8pF |
| XYAEECNANF-27.120000 | Taitien | XY | 27.12MHz | ±30ppm | ±30ppm | 8pF |
| XYAEECNANF-27.120000 | Taitien | XY | 27.12MHz | ±30ppm | ±30ppm | 8pF |
| XYAEECNANF-38.400000 | Taitien | XY | 38.4MHz | ±30ppm | ±30ppm | 8pF |
| XYAEECNANF-38.400000 | Taitien | XY | 38.4MHz | ±30ppm | ±30ppm | 8pF |
| XYAEECNANF-38.400000 | Taitien | XY | 38.4MHz | ±30ppm | ±30ppm | 8pF |
| XYAEECNANF-40.000000 | Taitien | XY | 40MHz | ±30ppm | ±30ppm | 8pF |
| XYAEECNANF-40.000000 | Taitien | XY | 40MHz | ±30ppm | ±30ppm | 8pF |
| XYAEECNANF-40.000000 | Taitien | XY | 40MHz | ±30ppm | ±30ppm | 8pF |
| XYAEECNANF-48.000000 | Taitien | XY | 48MHz | ±30ppm | ±30ppm | 8pF |
| XYAEECNANF-48.000000 | Taitien | XY | 48MHz | ±30ppm | ±30ppm | 8pF |
| XYAEECNANF-48.000000 | Taitien | XY | 48MHz | ±30ppm | ±30ppm | 8pF |
| XYAEECNANF-50.000000 | Taitien | XY | 50MHz | ±30ppm | ±30ppm | 8pF |
| XYAEECNANF-50.000000 | Taitien | XY | 50MHz | ±30ppm | ±30ppm | 8pF |
.jpg)
.jpg) |
