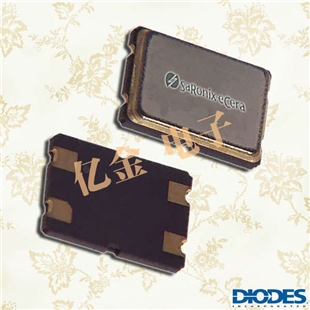

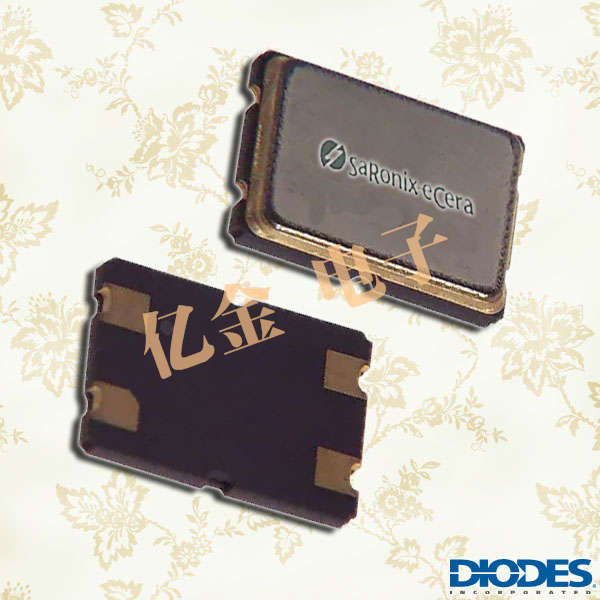

首頁進口晶振百利通亞陶晶振DIODES,FP2650003,26.5625MHz,15PF,7050,-40~85℃

DIODES,FP2650003,26.5625MHz,15PF,7050,-40~85℃

頻率：26.5625MHz
尺寸：7050
應　用： F61600023|16MHz|20PPM|-40~85℃|18PF|6035|DIODES，臺灣Diodes晶振，堅固的AT-cut晶體結構非常緊湊的SMD包可在磁帶和卷軸；16mm磁帶，每卷1000單位FP：無鉛和RoHS/綠色兼容，4墊FP系列接縫密封裝置采用亞切割帶晶體，...

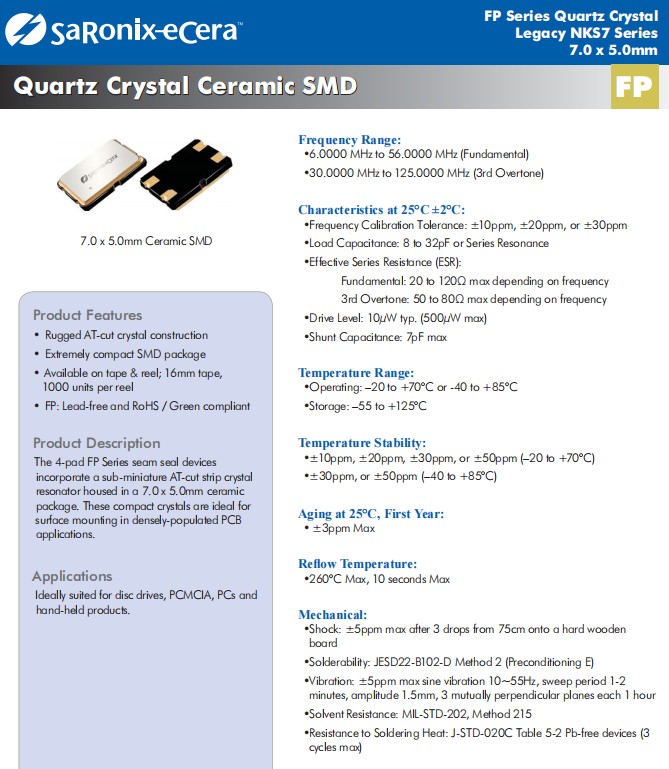

F61600023|16MHz|20PPM|-40~85℃|18PF|6035|DIODES，臺灣Diodes晶振，堅固的AT-cut晶體結構非常緊湊的SMD包可在磁帶和卷軸；16mm磁帶，每卷1000單位FP：無鉛和RoHS /綠色兼容，4墊FP系列接縫密封裝置采用亞切割帶晶體，封裝在7.0 x 5.0mm的范圍內。這些協議可用于在密集的PCB應用中的表面安裝。非常適合磁盤驅動器，PCMCIA，個人電腦和手持式產品。

F61600023|16MHz|20PPM|-40~85℃|18PF|6035|DIODES

Parameters

Minimum

Typical

Maximum

Units

頻率

6.000

56.000

MHz

操作模式

Fundamental

工作溫度

- 10

+50

ºC

儲存溫度

--40

+85

ºC

頻率容差 @+25°C

--50

+50

ppm

工作溫度下的頻率穩定性 ( ref. to +25°C)

--50

+50

ppm

并聯電容 (C0)

負載電容 (CL)

8 to 32

驅動電平

100

µW

老化

--5

ppm

F61600023|16MHz|20PPM|-40~85℃|18PF|6035|DIODES

Diodes零件編號	制造商	系列	頻率	頻率穩定性	頻率容差	負載電容
FP0800018	Diodes晶振	FP	8 MHz	±50ppm	±50ppm	18pF
FP0800056Z	Diodes晶振	FP	8 MHz	±30ppm	±30ppm	18pF
FP0600009	Diodes晶振	FP	6 MHz	-	-	-
FP2500070	Diodes晶振	FP	25 MHz	±10ppm	±10ppm	10pF
FP1070001	Diodes晶振	FP	10.779375 MHz	±10ppm	±10ppm	12pF
FP1200039	Diodes晶振	FP	12 MHz	±50ppm	±30ppm	18pF
FP1200040	Diodes晶振	FP	12 MHz	±30ppm	±30ppm	20pF
FP1200042	Diodes晶振	FP	12 MHz	±50ppm	±50ppm	22pF
FP2500053	Diodes晶振	FP	25 MHz	±30ppm	±30ppm	20pF
FP2500054	Diodes晶振	FP	25 MHz	±30ppm	±30ppm	18pF
FP2500060	Diodes晶振	FP	25.001875 MHz	±15ppm	±10ppm	12pF
FP2500068	Diodes晶振	FP	25 MHz	±20ppm	±20ppm	20pF
FP2650002	Diodes晶振	FP	26.5625 MHz	±30ppm	±30ppm	10pF
FP2650003	Diodes晶振	FP	26.5625 MHz	±30ppm	±30ppm	15pF
FP3000013	Diodes晶振	FP	30 MHz	±20ppm	±20ppm	20pF
FP0600026	Diodes晶振	FP	6 MHz	±50ppm	±30ppm	20pF
FP0600027	Diodes晶振	FP	6 MHz	±30ppm	±20ppm	18pF
FP0600035	Diodes晶振	FP	6 MHz	±30ppm	±30ppm	20pF
FP0600038	Diodes晶振	FP	6 MHz	±30ppm	±30ppm	16pF
FP0600039	Diodes晶振	FP	6 MHz	±50ppm	±20ppm	18pF
FP0600040	Diodes晶振	FP	6 MHz	±50ppm	±30ppm	12pF
FP0600041	Diodes晶振	FP	6 MHz	±30ppm	±30ppm	12pF
FP0730001	Diodes晶振	FP	-	-	-	-
FP0730013	Diodes晶振	FP	7.3728 MHz	±50ppm	±50ppm	20pF
FP0730016	Diodes晶振	FP	7.3728 MHz	±30ppm	±30ppm	20pF
FP0800013	Diodes晶振	FP	-	-	-	-
FP0800043	Diodes晶振	FP	-	-	-	-
FP0800046	Diodes晶振	FP	8 MHz	±15ppm	±10ppm	20pF
FP0800047	Diodes晶振	FP	8 MHz	±50ppm	±30ppm	18pF
FP0800049	Diodes晶振	FP	8 MHz	±30ppm	±20ppm	18pF
FP0810004	Diodes晶振	FP	-	-	-	-
FP0810005	Diodes晶振	FP	-	-	-	-
FP0980008	Diodes晶振	FP	9.8304 MHz	±50ppm	±30ppm	20pF
FP6400002	Diodes晶振	FP	64 MHz	±30ppm	±30ppm	18pF
FP0600044Q	Diodes晶振	FP	6 MHz	±40ppm	±10ppm	18pF
FP0730017Z	Diodes晶振	FP	7.3728 MHz	±30ppm	±30ppm	18pF
