VCXO2E-V-C-20.000MHz-T3|MHz VCXO Oscillators
- 頻率：20MHz
- 尺寸：5.0×3.2mm
- 應 用： Micro晶振,VCXO2E壓控晶振,有源晶振,VCXO2E-V-C-20.000MHz-T3晶振,VCXO晶振,石英晶體振蕩器,5032mm晶振,四腳貼片晶振,SMD晶振,頻率20MHz,電壓3.3V,工作溫度-55~125°C,頻率容差110ppm,耐高溫晶振,無鉛環保晶振,低老化...
-
-
VCXO2E-V-C-20.000MHz-T3|MHz VCXO Oscillators,Micro晶振,VCXO2E壓控晶振,有源晶振,VCXO2E-V-C-20.000MHz-T3晶振,VCXO晶振,石英晶體振蕩器,5032mm晶振,四腳貼片晶振,SMD晶振,頻率20MHz,電壓3.3V,工作溫度-55~125°C,頻率容差110ppm,耐高溫晶振,無鉛環保晶振,低老化晶振,地熱設備晶振,航空電子晶振,無線電通信晶振,井下和鉆井應用晶振.
VCXO2E-V-C-20.000MHz-T3|MHz VCXO Oscillators特點：
•卓越的密封與金-錫預制
•高穩定性，低老化，密封保證
•寬頻率牽引范圍APR
•非?？斓膯?/span>
•在基本模式下運行
•高抗沖擊和抗振動
•100%不含鉛，符合RoHS標準

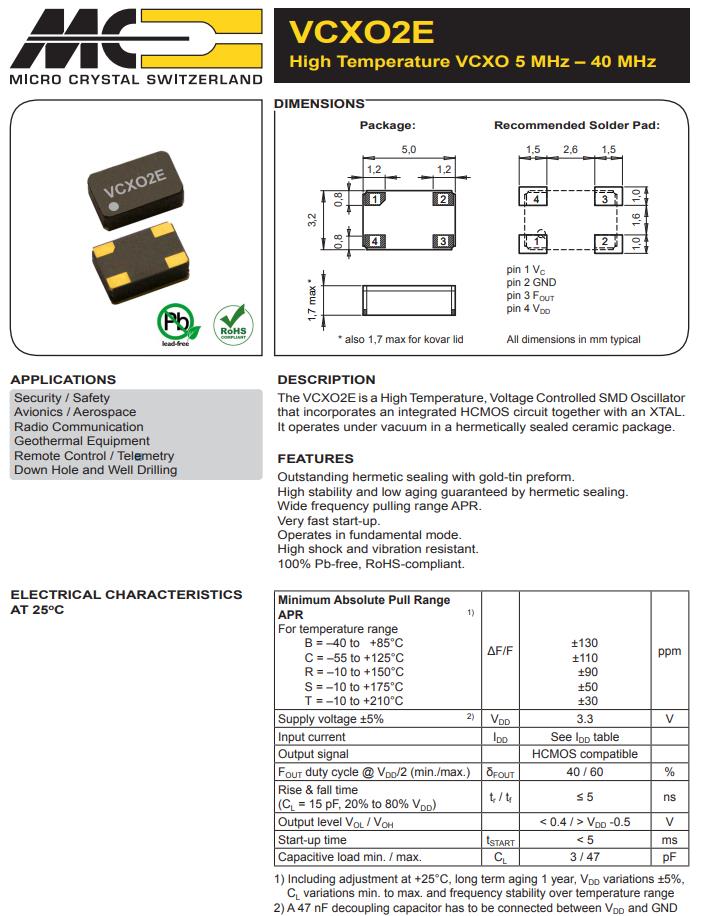

VCXO2E-V-C-20.000MHz-T3|MHz VCXO Oscillators規格表
| Standard Frequency | FL | 20 | MHz |
| Supply voltage ±5% | VDD | 3.3 | V |
| Frequency tolerance | ΔF/F | ±110 | ppm |
| Input Current | IDD |
< 5
|
mA |
| Output signal | HCMOS compatible | ||
| FOUT duty cycle @ VDD/2 (min./max.) | δFOUT | 40 / 60 | % |
|
Rise & fall time
(CL = 15 pF, 20% to 80% VDD)
|
tr / tf | ≤ 5 | ns |
|
Output level VOL / VOH
|
|
< 0.4 / > VDD -0.5
|
V |
| Start-up time | tSTART | < 5 | ms |
|
Capacitive load min. / max
|
CL
|
3 / 47
|
pF |
| Storage temperature range | T_stg | −65~+125 | °C |
| Operating temperature range | T_use | −55~+125 | °C |
| Shock resistance | 10000 g, 0.3 ms, ½ sine | ||
| Vibration resistance | 80 g / 10–2000 Hz | ||
| Lid |
Ceramic Lid
(Kovar Lid on T range version)
|
||
| Terminations (Option ) |
SnAgCu solder dipped pads (T3)
|
.jpg)

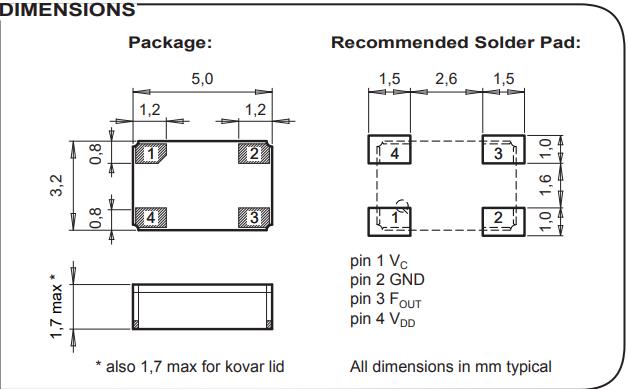

VCXO2E-V-C-20.000MHz-T3|MHz VCXO Oscillators尺寸圖
.jpg)
.jpg)
