OM-7605-C8-20ppm-TA-QC|MICRO OSCILLATORS|2012mm
- 頻率：32.768KHz
- 尺寸：2.0×1.2mm
- 應 用： MICRO晶振,OM-7605-C8石英晶振,32.768K有源晶振,OM-7605-C8-20ppm-TA-QC晶振,2012mm晶振,晶體振蕩器,SMD晶振,四腳貼片晶振,頻率32.768KHz,電壓1.6~5.5V,工作溫度-40~85°C,頻率容差20ppm,無鉛環保晶振,輕薄小晶振,高品...
-
-
OM-7605-C8-20ppm-TA-QC|MICRO OSCILLATORS|2012mm,MICRO晶振,OM-7605-C8石英晶振,32.768K有源晶振,OM-7605-C8-20ppm-TA-QC晶振,2012mm晶振,晶體振蕩器,SMD晶振,四腳貼片晶振,頻率32.768KHz,電壓1.6~5.5V,工作溫度-40~85°C,頻率容差20ppm,無鉛環保晶振,輕薄小晶振,高品質晶振,測試與測量設備晶振,超薄設備應用晶振,家庭醫療保健晶振,健身設備晶振.
OM-7605-C8-20ppm-TA-QC|MICRO OSCILLATORS|2012mm特點：
•寬電源電壓范圍
•非常低的功耗
•CLKOUT啟用/禁用
•體積小，低輪廓，重量輕(5.1毫克)
•高抗沖擊和抗振動
•100%不含鉛，符合rohs標準
•具備AEC-Q200汽車資質
OM-7605-C8-20ppm-TA-QC|MICRO OSCILLATORS|2012mm規格表
|
Standard Frequency
|
FL | 32.768 | KHz |
|
Supply voltage
|
VDD
|
1.6~5.5 | V |
|
Frequency tolerance
|
ΔF/F | ±20 | ppm |
|
Current consumption (typ./max.)
|
IDD
|
0.45 / 0.65
|
µA
|
|
Duty cycle (min./max.)
|
|
40 / 60
|
% |
|
Start up time (max.)
|
tstart
|
0.5
|
S
|
|
Voltage coefficient (max.)
|
|
±3
|
ppm/V
|
|
Aging first year max. @ 25°C
|
ΔF/F
|
±3
|
ppm
|
|
Turnover temperature (typ.)
|
T0
|
25 ±5
|
°C
|
|
Frequency vs. temperature
|
ΔF/F0
|
–0.035 ppm/ °C² (T - T0)2 ±10%
|
ppm |
|
Storage temperature range
|
T_stg
|
−55~+125 |
°C
|
|
TA Operating temperature range
|
T_use | −40~+85 | °C |
|
Shock resistance
|
5000 g, 0.3 ms, ½ sine
|
||
|
Vibration resistance
|
20 g / 10–2000 Hz
|
.jpg)

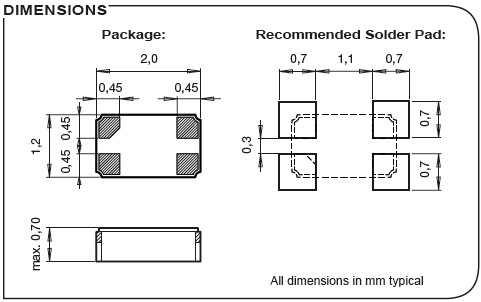

OM-7605-C8-20ppm-TA-QC|MICRO OSCILLATORS|2012mm尺寸圖
.JPG)
