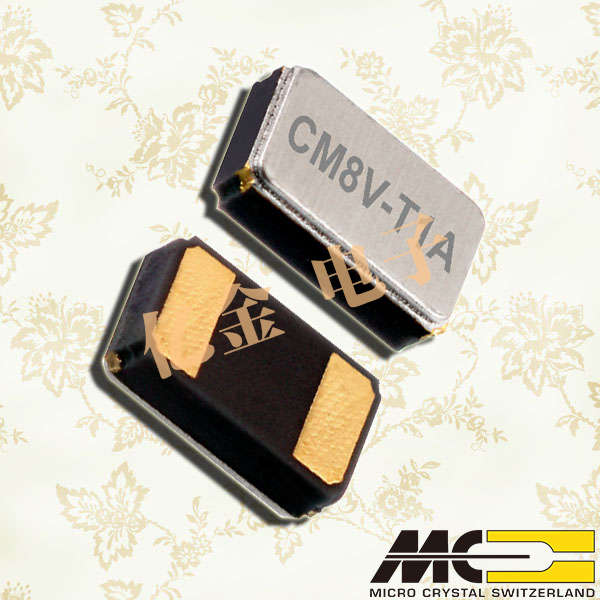

CM8V-T1A-Low ESR-32.768kHz-12.5pF-20ppm-TA-QC|MICRO CRYSTAL
- 頻率：32.768KHz
- 尺寸：2.0×1.2mm
- 應 用： 歐美進口晶振,Micro Crystal,CM8V-T1A Low ESR無源晶振,音叉晶振,CM8V-T1A-Low ESR-32.768kHz-12.5pF-20ppm-TA-QC晶振,2012mm晶振,石英晶體諧振器,二腳貼片晶振,SMD晶體,頻率32.768KHz,負載12.5pF,工作溫度-40~85°C,...
-
-
CM8V-T1A-Low ESR-32.768kHz-12.5pF-20ppm-TA-QC|MICRO CRYSTAL,歐美進口晶振,Micro Crystal,CM8V-T1A Low ESR無源晶振,音叉晶振,CM8V-T1A-Low ESR-32.768kHz-12.5pF-20ppm-TA-QC晶振,2012mm晶振,石英晶體諧振器,二腳貼片晶振,SMD晶體,頻率32.768KHz,負載12.5pF,工作溫度-40~85°C,頻率容差20ppm,超小尺寸晶振,低功耗晶振,高穩定性晶振,可穿戴設備晶振,筆記本電腦晶振,智能手機晶振,物聯網晶振.
CM8V-T1A-Low ESR-32.768kHz-12.5pF-20ppm-TA-QC|MICRO CRYSTAL特點：
•低功耗設計的最大ESR值為50 kΩ
•卓越的密封與金-錫預制
•高穩定性，低老化，密封保證
•可擴展工作溫度范圍
•超小尺寸，低輪廓，重量輕(4.6毫克)
•高抗沖擊和抗振動
•100%不含鉛，符合rohs標準
•具備AEC-Q200汽車資質
CM8V-T1A-Low ESR-32.768kHz-12.5pF-20ppm-TA-QC|MICRO CRYSTAL規格表
|
Standard Frequency
|
FL | 32.768 | KHz |
|
Load capacitance
|
CL | 12.5 | pF |
|
Frequency tolerance
|
ΔF/F | ±20 | ppm |
|
Series resistance typ./max
|
RS | 40/50 | kΩ |
|
Motional capacitance typ.
|
C1
|
6.1 |
fF
|
|
Static capacitance typ.
|
C0
|
1.4 |
pF
|
|
Drive level max.
|
P | 0.5 |
μW
|
|
Insulation resistance min.
|
Ri
|
500 |
MΩ
|
|
Aging first year max.
|
ΔF/F
|
±3
|
ppm |
|
Turnover temperature
|
T0
|
25 ±5
|
°C
|
|
Frequency vs. temperature
|
ΔF/F0
|
–0.035 ppm/°C² (T - T0)2 ±10%
|
ppm |
|
Storage temperature range
|
T_stg
|
−55~+125 |
°C
|
|
TA Operating temperature range
|
T_use | −40~+85 | °C |
.jpg)

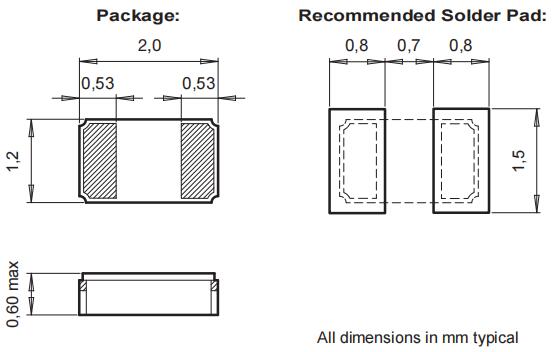

CM8V-T1A-Low ESR-32.768kHz-12.5pF-20ppm-TA-QC|MICRO CRYSTAL尺寸圖
