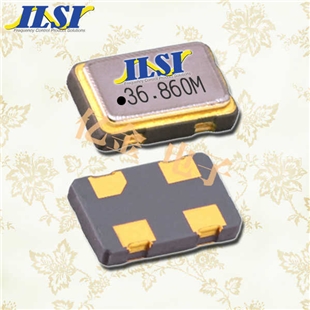

美國ILSI晶振|ISM42-3A6-32.000000 MHz|低相位抖動晶振

  • 頻率：32MHz
  • 尺寸：5.0×3.2mm
  • 應　用： 美國ILSI晶振,ISM42振蕩器,貼片石英晶振,ISM42-3A6-32.000000 MHz晶振,有源晶振,SMD晶振,LVCMOS輸出晶振,5032mm晶振,四腳封裝晶振,頻率32MHz,電壓2.5V,工作溫度-20~70°C,頻率穩定性25ppm,耐老化晶振,低相位抖動晶振,...
  • RoHS RoHS2


美國ILSI晶振|ISM42-3A6-32.000000 MHz|低相位抖動晶振,美國ILSI晶振,ISM42振蕩器,貼片石英晶振,ISM42-3A6-32.000000 MHz晶振,有源晶振,SMD晶振,LVCMOS輸出晶振,5032mm晶振,四腳封裝晶振,頻率32MHz,電壓2.5V,工作溫度-20~70°C,頻率穩定性25ppm,耐老化晶振,低相位抖動晶振,高可靠性晶振,電纜調制解調器晶振,音頻系統晶振,專業視頻設備晶振,以太網晶振.
美國ILSI晶振|ISM42-3A6-32.000000 MHz|低相位抖動晶振特點
●頻率范圍:20.000MHz至50.000MHZ
●電源電壓，1.8Vdc, 2.5Vdc, 3.3Vdc
●引腳1上的三態功能
●超低相位抖動和相位噪聲
●行業標準3.5mm x 5.0mm封裝
●LVCMOS輸出
●符合RoHS和REACH標準

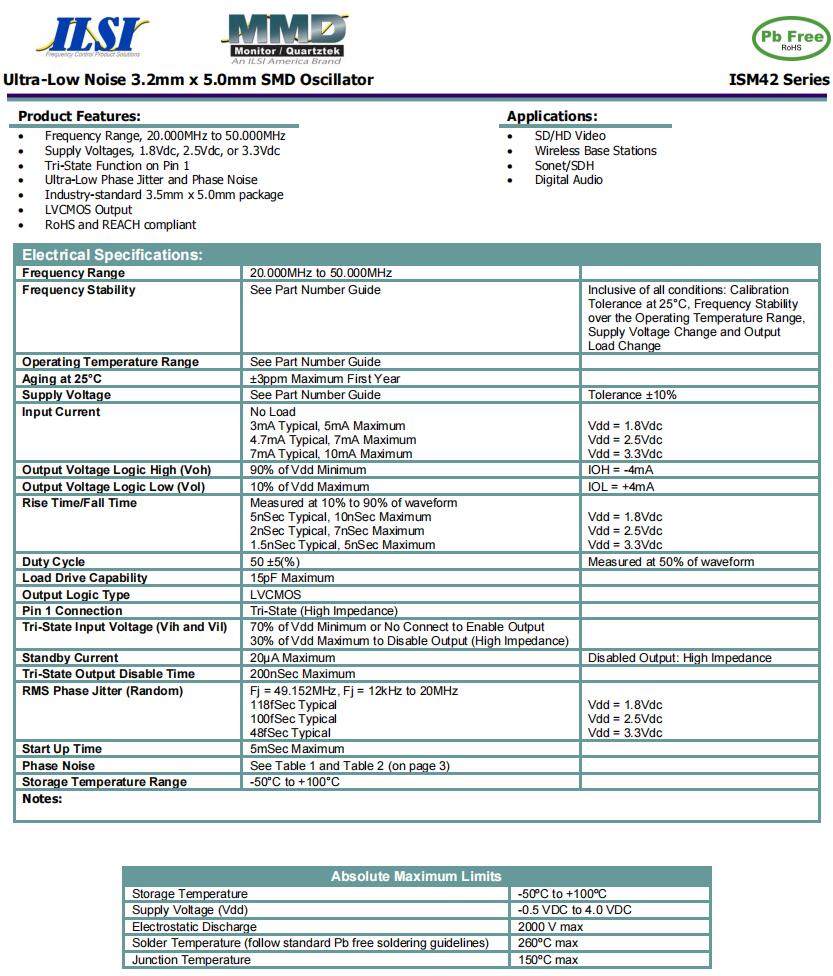

美國ILSI晶振|ISM42-3A6-32.000000 MHz|低相位抖動晶振規格表
Electrical Specifications:
Frequency Range 32MHz
Frequency Stability 土25 ppm
Operating Temperature Range -20°C to +70°C
Aging at 25°c +3ppm Maximum First Year
Supply Voltage 2.5V Tolerance +10%
Input Current No Load
3mA Typical, 5mA Maximum
4.7mA Typical, 7mA Maximum
7mA Typical, 10mA Maximum
Vdd= 1.8Vdc
Vdd= 2.5Vdc
Vdd = 3.3Vdc
Output Voltage Logic High(Voh) 90% of Vdd Minimum IOH=-4mA
Output Voltage Logic Low(Vol) 10% of Vdd Maximum IOL=+4mA
Rise Time/Fall Time Measured at 10% to 90% of waveform
5nSec Typical, 10nSec Maximum
2nSec Typical, 7nSec Maximum
1.5nSec Typical, 5nSec Maximum
Vdd= 1.8Vdc
Vdd = 2.5Vdc
Vdd= 3.3Vdc
Duty Cycle 50+5(%) Measured at 50% of wavefomm
Load Drive Capability 15pF Maximum
Output Logic Type LVCMOS
Pin 1 Connection Tri-State (High lmpedance)
Tri-State Input Voltage (Vih and Vil) 70% of Vdd Minimum or No Connect to Enable Output
30% of Vdd Maximum to Disable Output (High lmpedance)
Standby Current 20uA Maximum Disabled Output High lmpedance
Tri-State Output Disable Time 200nSec Maximum
RMS Phase Jitter(Random) Fi= 49.152MHz.Fi= 12kHz to 20MHz
118fSec Typical
100fSec Typical
48fSec Typical
Vdd= 1.8Vdc
Vdd = 2.5Vdc
Vdd= 3.3Vdc
Start Up Time 5mSec Maximum
Phase Noise See Table 1 and Table 2 (on Page 3)
Storage Temperature Range -55°C to +100°C

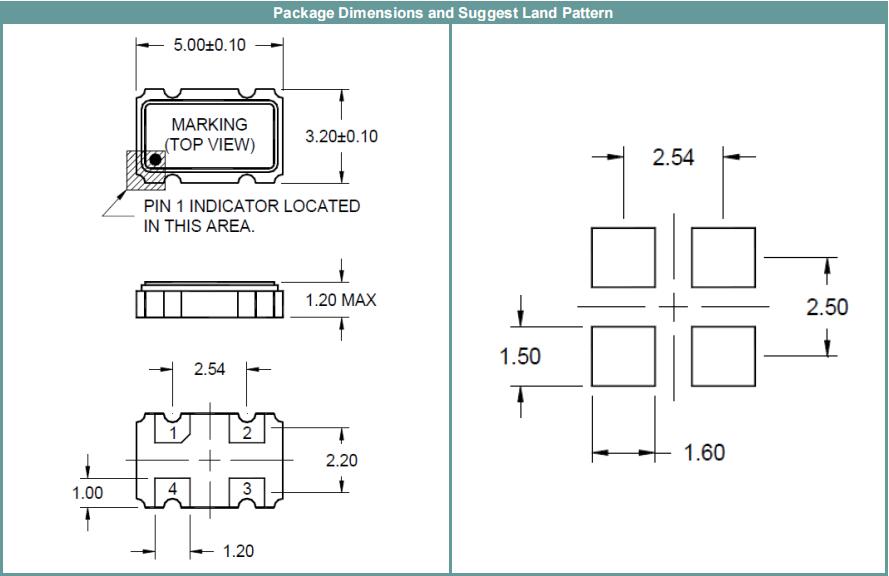

美國ILSI晶振|ISM42-3A6-32.000000 MHz|低相位抖動晶振尺寸圖

原廠編碼 品牌 型號 工作溫度 頻率 頻率容差 負載
HC49USM-BA1F12- 24.000 MHz ILSI HC49USM 0°C ~ 70°C 24 MHz ±50ppm 12 pF
HC49USM-BA3F18- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±50ppm 18 pF
HC49USM-BA5F18- 8.000 MHz ILSI HC49USM -40°C ~ 85°C 8 MHz ±50ppm 18 pF
HC49USM-BB3F10- 13.52313 MHz ILSI HC49USM -20°C ~ 70°C 13.52313 MHz ±50ppm 10 pF
HC49USM-BB5F20- 11.0592 MHz ILSI HC49USM -40°C ~ 85°C 11.0592 MHz ±50ppm 20 pF
HC49USM-FB1F18- 8.000 MHz ILSI HC49USM 0°C ~ 70°C 8 MHz ±30ppm 18 pF
HC49USM-FB1F18- 28.224 MHz ILSI HC49USM 0°C ~ 70°C 28.224 MHz ±30ppm 18 pF
HC49USM-FB1F20- 3.6864 MHz ILSI HC49USM 0°C ~ 70°C 3.6864 MHz ±30ppm 20 pF
HC49USM-FB2F30- 4.000 MHz ILSI HC49USM -10°C ~ 60°C 4 MHz ±30ppm 30 pF
HC49USM-FB2F30- 8.000 MHz ILSI HC49USM -10°C ~ 60°C 8 MHz ±30ppm 30 pF
HC49USM-FB3F10- 9.650 MHz ILSI HC49USM -20°C ~ 70°C 9.65 MHz ±30ppm 10 pF
HC49USM-FB3F18- 4.545 MHz ILSI HC49USM -20°C ~ 70°C 4.545 MHz ±30ppm 18 pF
HC49USM-FB3F18- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±30ppm 18 pF
HC49USM-FB3F18- 25.175 MHz ILSI HC49USM -20°C ~ 70°C 25.175 MHz ±30ppm 18 pF
HC49USM-FB3F20- 6.000 MHz ILSI HC49USM -20°C ~ 70°C 6 MHz ±30ppm 20 pF
HC49USM-FB3F20- 8.000 MHz ILSI HC49USM -20°C ~ 70°C 8 MHz ±30ppm 20 pF
HC49USM-FB3F20- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±30ppm 20 pF
HC49USM-FB5F18- 3.579545 MHz ILSI HC49USM -40°C ~ 85°C 3.579545 MHz ±30ppm 18 pF
HC49USM-FB5F18- 4.194304 MHz ILSI HC49USM -40°C ~ 85°C 4.194304 MHz ±30ppm 18 pF
HC49USM-FB5F18- 12.000 MHz ILSI HC49USM -40°C ~ 85°C 12 MHz ±30ppm 18 pF
HC49USM-FB5F18- 20.000 MHz ILSI HC49USM -40°C ~ 85°C 20 MHz ±30ppm 18 pF
HC49USM-FB5F20- 3.6864 MHz ILSI HC49USM -40°C ~ 85°C 3.6864 MHz ±30ppm 20 pF
HC49USM-FB5F20- 8.000 MHz ILSI HC49USM -40°C ~ 85°C 8 MHz ±30ppm 20 pF
HC49USM-FB5F20- 12.000 MHz ILSI HC49USM -40°C ~ 85°C 12 MHz ±30ppm 20 pF
HC49USM-FB5F20- 12.288 MHz ILSI HC49USM -40°C ~ 85°C 12.288 MHz ±30ppm 20 pF
HC49USM-FB5F20- 16.000 MHz ILSI HC49USM -40°C ~ 85°C 16 MHz ±30ppm 20 pF
HC49USM-FF3F18- 3.6864 MHz ILSI HC49USM -20°C ~ 70°C 3.6864 MHz ±30ppm 18 pF
HC49USM-FF3F18- 4.000 MHz ILSI HC49USM -20°C ~ 70°C 4 MHz ±30ppm 18 pF
HC49USM-FF3F18- 4.9152 MHz ILSI HC49USM -20°C ~ 70°C 4.9152 MHz ±30ppm 18 pF
HC49USM-FF3F18- 6.000 MHz ILSI HC49USM -20°C ~ 70°C 6 MHz ±30ppm 18 pF
HC49USM-FF3F18- 6.144 MHz ILSI HC49USM -20°C ~ 70°C 6.144 MHz ±30ppm 18 pF
HC49USM-FF3F18- 7.3728 MHz ILSI HC49USM -20°C ~ 70°C 7.3728 MHz ±30ppm 18 pF
HC49USM-FF3F18- 8.000 MHz ILSI HC49USM -20°C ~ 70°C 8 MHz ±30ppm 18 pF
HC49USM-FF3F18- 11.0592 MHz ILSI HC49USM -20°C ~ 70°C 11.0592 MHz ±30ppm 18 pF
HC49USM-FF3F18- 12.000 MHz ILSI HC49USM -20°C ~ 70°C 12 MHz ±30ppm 18 pF
HC49USM-FF3F18- 14.7456 MHz ILSI HC49USM -20°C ~ 70°C 14.7456 MHz ±30ppm 18 pF
HC49USM-FF3F18- 16.000 MHz ILSI HC49USM -20°C ~ 70°C 16 MHz ±30ppm 18 pF
HC49USM-FF3F18- 18.432 MHz ILSI HC49USM -20°C ~ 70°C 18.432 MHz ±30ppm 18 pF
HC49USM-FF3F18- 20.000 MHz ILSI HC49USM -20°C ~ 70°C 20 MHz ±30ppm 18 pF
HC49USM-FF3F18- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±30ppm 18 pF
HC49USM-FF3F18- 9.909116 MHz ILSI HC49USM -20°C ~ 70°C 9.909116 MHz ±30ppm 18 pF
HC49USM-FF5F10- 9.81713 MHz ILSI HC49USM -40°C ~ 85°C 9.81713 MHz ±30ppm 10 pF
HC49USM-FF5F18- 3.6864 MHz ILSI HC49USM -40°C ~ 85°C 3.6864 MHz ±30ppm 18 pF
HC49USM-FF5F18- 3.93216 MHz ILSI HC49USM -40°C ~ 85°C 3.93216 MHz ±30ppm 18 pF
HC49USM-FF5F18- 4.000 MHz ILSI HC49USM -40°C ~ 85°C 4 MHz ±30ppm 18 pF
HC49USM-FF5F18- 6.000 MHz ILSI HC49USM -40°C ~ 85°C 6 MHz ±30ppm 18 pF
HC49USM-FF5F18- 7.3728 MHz ILSI HC49USM -40°C ~ 85°C 7.3728 MHz ±30ppm 18 pF
HC49USM-FF5F18- 8.000 MHz ILSI HC49USM -40°C ~ 85°C 8 MHz ±30ppm 18 pF
HC49USM-FF5F18- 10.000 MHz ILSI HC49USM -40°C ~ 85°C 10 MHz ±30ppm 18 pF
HC49USM-FF5F18- 11.0592 MHz ILSI HC49USM -40°C ~ 85°C 11.0592 MHz ±30ppm 18 pF
HC49USM-FF5F18- 12.000 MHz ILSI HC49USM -40°C ~ 85°C 12 MHz ±30ppm 18 pF
HC49USM-FF5F18- 14.7456 MHz ILSI HC49USM -40°C ~ 85°C 14.7456 MHz ±30ppm 18 pF
HC49USM-FF5F18- 16.000 MHz ILSI HC49USM -40°C ~ 85°C 16 MHz ±30ppm 18 pF
HC49USM-FF5F18- 18.432 MHz ILSI HC49USM -40°C ~ 85°C 18.432 MHz ±30ppm 18 pF
HC49USM-FF5F18- 20.000 MHz ILSI HC49USM -40°C ~ 85°C 20 MHz ±30ppm 18 pF
HC49USM-FF5F18- 25.000 MHz ILSI HC49USM -40°C ~ 85°C 25 MHz ±30ppm 18 pF
IL3X-HX5F12.5- 32.768 KHz ILSI IL3X -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
IL3X2-HX5F12.5- 32.768 KHz ILSI IL3X2 -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
IL3X2-HX5F6- 32.768 KHz ILSI IL3X2 -40°C ~ 85°C 32.768 kHz ±20ppm 6 pF
IL3X2-HX5F7- 32.768 kHz ILSI IL3X2 -40°C ~ 85°C 32.768 kHz ±20ppm 7 pF
IL3X2-HX5F9- 32.768 kHz ILSI IL3X2 -40°C ~ 85°C 32.768 kHz ±20ppm 9 pF
ILCX04-FB1F18- 27.000 MHz ILSI ILCX04 0°C ~ 70°C 27 MHz ±30ppm 18 pF
ILCX04-FB1F18- 28.224 MHz ILSI ILCX04 0°C ~ 70°C 28.224 MHz ±30ppm 18 pF
ILCX04-FB3F18- 7.3728 MHz ILSI ILCX04 -20°C ~ 70°C 7.3728 MHz ±30ppm 18 pF
ILCX04-FB5F20- 22.1184 MHz ILSI ILCX04 -40°C ~ 85°C 22.1184 MHz ±30ppm 20 pF
ILCX04-FB5F20- 25.000 MHz ILSI ILCX04 -40°C ~ 85°C 25 MHz ±30ppm 20 pF
ILCX04-FB5F20- 6.000 MHz ILSI ILCX04 -40°C ~ 85°C 6 MHz ±30ppm 20 pF
ILCX04-FF1F20- 8.000 MHz ILSI ILCX04 0°C ~ 70°C 8 MHz ±30ppm 20 pF
ILCX04-JH5F18- 8.000 MHz ILSI ILCX04 -40°C ~ 85°C 8 MHz ±10ppm 18 pF
ILCX07-BB3F12- 16.000 MHz ILSI ILCX07 -20°C ~ 70°C 16 MHz ±50ppm 12 pF
ILCX07-FB3F13-16.000MHz ILSI ILCX07 -20°C ~ 70°C 16 MHz ±30ppm 13 pF
ILCX07-FB5F12- 20.000 MHz ILSI ILCX07 -40°C ~ 85°C 20 MHz ±30ppm 12 pF
ILCX07-FF1F20- 25.000 MHz ILSI ILCX07 0°C ~ 70°C 25 MHz ±30ppm 20 pF
ILCX07-FF3F16- 9.984 MHz ILSI ILCX07 -20°C ~ 70°C 9.984 MHz ±30ppm 16 pF
ILCX07-FF3F16- 10.78125 MHz ILSI ILCX07 -20°C ~ 70°C 10.78125 MHz ±30ppm 16 pF
ILCX07-FF3F16- 13.560 MHz ILSI ILCX07 -20°C ~ 70°C 13.56 MHz ±30ppm 16 pF
ILCX07-FF5F12.5-8.000MHz ILSI ILCX07 -40°C ~ 85°C 8 MHz ±30ppm 12 pF
ILCX07-FF5F18- 24.000 MHz ILSI ILCX07 -40°C ~ 85°C 24 MHz ±30ppm 18 pF
ILCX07-FF5F18- 25.000 MHz ILSI ILCX07 -40°C ~ 85°C 25 MHz ±30ppm 18 pF
ILCX07-FF5F20- 25.000 MHz ILSI ILCX07 -40°C ~ 85°C 25 MHz ±30ppm 20 pF
ILCX07-HB3F18- 20.000 MHz ILSI ILCX07 -20°C ~ 70°C 20 MHz ±20ppm 18 pF
ILCX07-HB3F18- 27.000 MHz ILSI ILCX07 -20°C ~ 70°C 27 MHz ±20ppm 18 pF
ILCX07-JJ2F10- 8.000 MHz ILSI ILCX07 -10°C ~ 60°C 8 MHz ±10ppm 10 pF
ILCX07-JJ3F10- 12.000 MHz ILSI ILCX07 -20°C ~ 70°C 12 MHz ±10ppm 10 pF
ILCX07A-FB1F12- 18.432 MHz ILSI ILCX07A 0°C ~ 70°C 18.432 MHz ±30ppm 12 pF
ILCX07A-FB3F18- 12.000 MHz ILSI ILCX07A -20°C ~ 70°C 12 MHz ±30ppm 18 pF
ILCX07B-FB1F18- 14.7456 MHz ILSI ILCX07B 0°C ~ 70°C 14.7456 MHz ±30ppm 18 pF
ILCX07B-FB1F18-27.120MHz ILSI ILCX07B 0°C ~ 70°C 27.12 MHz ±30ppm 18 pF
ILCX07B-FB5F20- 29.4912 MHz ILSI ILCX07B -40°C ~ 85°C 29.4912 MHz ±30ppm 20 pF
ILCX08-HH5F18- 8.000 MHz ILSI ILCX08 -40°C ~ 85°C 8 MHz ±20ppm 18 pF
ILCX08-JG5F18- 24.000 MHz ILSI ILCX08 -40°C ~ 85°C 24 MHz ±10ppm 18 pF
ILCX08-JH5F18- 8.000 MHz ILSI ILCX08 -40°C ~ 85°C 8 MHz ±10ppm 18 pF
ILCX08-JH5F18- 16.000 MHz ILSI ILCX08 -40°C ~ 85°C 16 MHz ±10ppm 18 pF
ILCX13-BB5F10- 12.000000 MHz ILSI ILCX13 -40°C ~ 85°C 12 MHz ±50ppm 10 pF
ILCX13-BB5F10- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±50ppm 10 pF
ILCX13-BB5F10- 49.152 MHz ILSI ILCX13 -40°C ~ 85°C 49.152 MHz ±50ppm 10 pF
ILCX13-BH3F18- 12.000 MHZ ILSI ILCX13 -20°C ~ 70°C 12 MHz ±50ppm 18 pF
ILCX13-FB5F15- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±30ppm 15 pF
ILCX13-FB5F18- 12.000 MHz ILSI ILCX13 -40°C ~ 85°C 12 MHz ±30ppm 18 pF
ILCX13-FB5F18- 16.000 MHz ILSI ILCX13 -40°C ~ 85°C 16 MHz ±30ppm 18 pF
ILCX13-FB5F18- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±30ppm 18 pF
ILCX13-FB5F18- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±30ppm 18 pF
ILCX13-FF3F10- 12.000 MHz ILSI ILCX13 -20°C ~ 70°C 12 MHz ±30ppm 10 pF
ILCX13-FF3F8- 24.000 MHz ILSI ILCX13 -20°C ~ 70°C 24 MHz ±30ppm 8 pF
ILCX13-FF5F18- 12.000 MHz ILSI ILCX13 -40°C ~ 85°C 12 MHz ±30ppm 18 pF
ILCX13-FF5F18- 16.000 MHz ILSI ILCX13 -40°C ~ 85°C 16 MHz ±30ppm 18 pF
ILCX13-FF5F18- 20.000 MHz ILSI ILCX13 -40°C ~ 85°C 20 MHz ±30ppm 18 pF
ILCX13-FF5F18- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±30ppm 18 pF
ILCX13-FF5F18- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±30ppm 18 pF
ILCX13-FF5F18- 32.000 MHz ILSI ILCX13 -40°C ~ 85°C 32 MHz ±30ppm 18 pF
ILCX13-HB3F18- 24.000 MHz ILSI ILCX13 -20°C ~ 70°C 24 MHz ±20ppm 18 pF
ILCX13-HB3F18- 32.000 MHz ILSI ILCX13 -20°C ~ 70°C 32 MHz ±20ppm 18 pF
ILCX13-HF3F18- 12.000 MHz ILSI ILCX13 -20°C ~ 70°C 12 MHz ±20ppm 18 pF
ILCX13-HF3F18- 25.000 MHz ILSI ILCX13 -20°C ~ 70°C 25 MHz ±20ppm 18 pF
ILCX13-HF5F10- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±20ppm 10 pF
ILCX13-HF5F12- 12.000 MHz ILSI ILCX13 -40°C ~ 85°C 12 MHz ±20ppm 12 pF
ILCX13-HF5F12- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±20ppm 12 pF
ILCX13-HF5F18- 12.000 MHz ILSI ILCX13 -40°C ~ 85°C 12 MHz ±20ppm 18 pF
ILCX13-HF5F18- 16.000 MHz ILSI ILCX13 -40°C ~ 85°C 16 MHz ±20ppm 18 pF
ILCX13-HF5F18- 22.1184 MHz ILSI ILCX13 -40°C ~ 85°C 22.1184 MHz ±20ppm 18 pF
ILCX13-HF5F18- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±20ppm 18 pF
ILCX13-HF5F18- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±20ppm 18 pF
ILCX13-HF5F18- 48.000 MHz ILSI ILCX13 -40°C ~ 85°C 48 MHz ±20ppm 18 pF
ILCX13-HG5F19 -50.2232 MHz ILSI ILCX13 -40°C ~ 85°C 50.2232 MHz ±20ppm 19 pF
ILCX13-HH3F18- 25.000 MHz ILSI ILCX13 -20°C ~ 70°C 25 MHz ±20ppm 18 pF
ILCX13-HH3F18- 27.000 MHz ILSI ILCX13 -20°C ~ 70°C 27 MHz ±20ppm 18 pF
ILCX13-HH3F8- 10.77938 MHz ILSI ILCX13 -20°C ~ 70°C 10.77938 MHz ±20ppm 8 pF
ILCX13-HH3F8- 10.78125 MHz ILSI ILCX13 -20°C ~ 70°C 10.78125 MHz ±20ppm 8 pF
ILCX13-HH5F18- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±20ppm 18 pF
ILCX13-IH1F12- 24.000 MHz ILSI ILCX13 0°C ~ 70°C 24 MHz ±15ppm 12 pF
ILCX13-IH1F12- 25.000 MHz ILSI ILCX13 0°C ~ 70°C 25 MHz ±15ppm 12 pF
ILCX13-II3F8- 24.000 MHz ILSI ILCX13 -20°C ~ 70°C 24 MHz ±15ppm 8 pF
ILCX13-II5F8- 40.000 MHz ILSI ILCX13 -40°C ~ 85°C 40 MHz ±15ppm 8 pF
ILCX13-JH5F8-39.000 MHz ILSI ILCX13 -40°C ~ 85°C 39 MHz ±10ppm 8 pF
ILCX13-JI1F9- 32.000 MHz ILSI ILCX13 0°C ~ 70°C 32 MHz ±10ppm 9 pF
ILCX13-JI5F10- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±10ppm 10 pF
ILCX13-JI5F8- 32.000 MHz ILSI ILCX13 -40°C ~ 85°C 32 MHz ±10ppm 8 pF
ILCX13-JI5F9- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±10ppm 9 pF
ILCX13-JJ2F10-30.000 MHz ILSI ILCX13 -10°C ~ 60°C 30 MHz ±10ppm 10 pF
ILCX13-JJ2F7- 16.000 MHz ILSI ILCX13 -10°C ~ 60°C 16 MHz ±10ppm 7 pF
ILCX13-JJ3F10- 16.000 MHz ILSI ILCX13 -20°C ~ 70°C 16 MHz ±10ppm 10 pF
ILCX13-JJ3F10- 32.000 MHz ILSI ILCX13 -20°C ~ 70°C 32 MHz ±10ppm 10 pF
ILCX13-JJ3F16- 16.000 MHz ILSI ILCX13 -20°C ~ 70°C 16 MHz ±10ppm 16 pF
ILCX13-JJ3F4- 24.000 MHz ILSI ILCX13 -20°C ~ 70°C 24 MHz ±10ppm 4 pF
ILCX13-JJ3F9- 16.000 MHz ILSI ILCX13 -20°C ~ 70°C 16 MHz ±10ppm 9 pF
ILCX18-FF3F18- 25.000 MHz ILSI ILCX18 -20°C ~ 70°C 25 MHz ±30ppm 18 pF
ILCX18-FF5F18- 16.000 MHz ILSI ILCX18 -40°C ~ 85°C 16 MHz ±30ppm 18 pF
ILCX18-FF5F18- 25.000 MHz ILSI ILCX18 -40°C ~ 85°C 25 MHz ±30ppm 18 pF
ILCX18-JI5F8- 32.000 MHz ILSI ILCX18 -40°C ~ 85°C 32 MHz ±10ppm 8 pF
公司：深圳市億金電子有限公司
SHENZHEN YIJIN ELECTRONICS CO;LTD
電話：0755-27876565
手機：18924600166
QQ：857950243
郵箱：yijindz@163.com
網站：http://m.arucbtxo.cn
地址：廣東省深圳市寶安區新安107國道旁

相關產品

誠征下列地區 晶振 | 石英晶振 | 圓柱晶振 | 貼片晶振 | 陶瓷晶振 | 石英晶體諧振器 | 頻率元件 的合作伙伴：
深圳市 廣州市 北京 上海 東莞 佛山 中山 順德 珠海 杭州 溫州 武漢 長沙 南京 大連 長春 西安 鄭州 澳門 沈陽 南寧 昆明 濟南 重慶 成都
kf
kf
close
kf 億金微信號
主站蜘蛛池模板： 蜜臀av在线播放一区二区三区 | 成人涩涩日本国产一区 | 色婷婷综合久久久中文字幕 | 黄色国产| 狠狠狠狠狠操 | 在线日韩视频 | 91在线视频免费播放 | 视频一区免费观看 | av大片 | 91亚洲精品视频 | avhd101在线成人播放 | 欧美性一区二区三区 | 91精品国产一区二区三区 | 尤物久久av一区二区三区亚洲 | 成人免费视频一区二区 | 久久人人爽爽人人爽人人片av | 天天插天天操天天干 | 在线免费av观看 | 99re6在线| 欧洲三级在线 | 91亚洲视频 | 日韩午夜 | 夜夜精品视频 | 99精品免费视频 | 亚洲精品久久久日韩美女极品合集下载 | 操碰97| 黄色视屏在线免费观看 | 精品亚洲一区二区三区四区五区 | 黄网站色大毛片 | 97久久精品午夜一区二区 | 国产在线看h | 国产精品视频在线观看 | 九九热在线免费视频 | 国产成人精品午夜 | 久草热8精品视频在线观看 高清av一区 | 色婷婷综合在线 | 国产天堂一区二区三区 | 日韩av电影在线播放 | 日韩大片 | 成人做爰999 | 一区二区视频免费 |
