FOX進口晶振,FC5BACBEI32.0-T1,6G無線通信晶振
- 頻率：32MHz
- 尺寸：5.0×3.2mm
- 應 用： FOX進口晶振,C5BA無源晶振,FC5BACBEI32.0-T1晶振,石英晶體諧振器,5032貼片晶振,頻率32MHz,負載10pF,頻率穩定性30ppm,工作溫度-40~125°C,耐高溫晶振,高品質晶振,6G無線通信晶振,汽車音響控制器晶振,車載CCD相機晶振, ...
-
-
FOX進口晶振,FC5BACBEI32.0-T1,6G無線通信晶振,FOX進口晶振,C5BA無源晶振,FC5BACBEI32.0-T1晶振,石英晶體諧振器,5032貼片晶振,頻率32MHz,負載10pF,頻率穩定性30ppm,工作溫度-40~125°C,耐高溫晶振,高品質晶振,6G無線通信晶振,汽車音響控制器晶振,車載CCD相機晶振, 電信交換機晶振.
FOX進口晶振,FC5BACBEI32.0-T1,6G無線通信晶振特點
•AEC Q200合格
•TS-16949質量管理體系
•公差低至±10ppm
•穩定性低至±20 PPM
•溫度范圍-40°C ~ +125°C

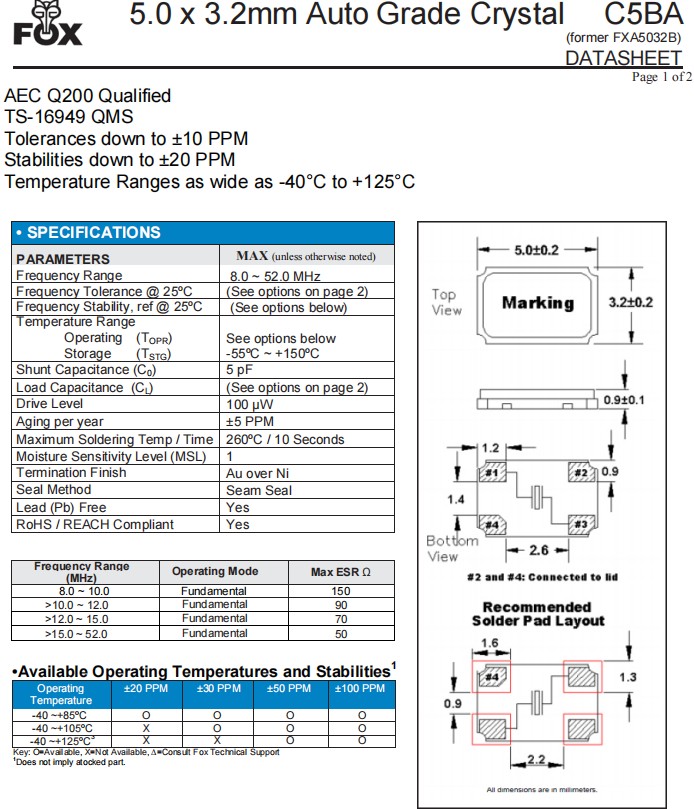

FOX進口晶振,FC5BACBEI32.0-T1,6G無線通信晶振規格表
| 參數 | 數值 |
| 標準頻率 | 32MHz |
| 頻率容差 | 30ppm |
| 頻率穩定性 | 50ppm |
| 工作溫度 | −40~+125°C |
| 儲存溫度 | −55~+150°C |
| 老化 | ±5ppm |
| 負載 | 10pF |
| 并聯電容 | 5pF Max |
| 激勵功率 | 100 µW Typical |
| 濕度敏感等級(MSL) | 1 |
| 最大焊接溫度/時間 |
260ºC / 10 Seconds
|
| 無鉛 |
Yes
|
| 通過無鉛認證 |
Yes
|
.jpg)

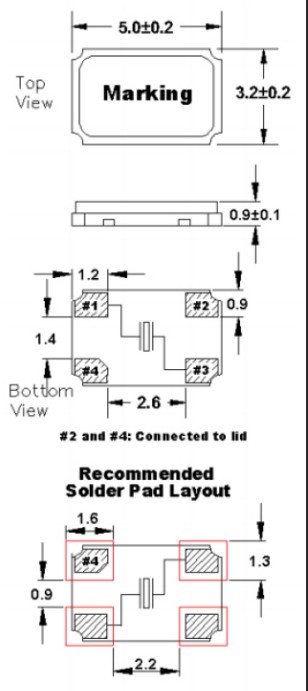

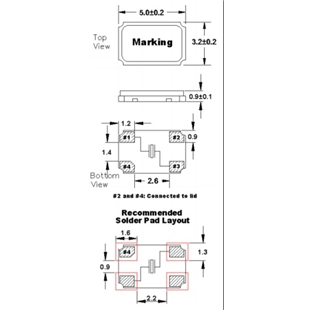

FOX進口晶振,FC5BACBEI32.0-T1,6G無線通信晶振尺寸圖
| 制造商零件編號 | 供應商 | 系列 | 頻率 | 頻率穩定性 | 頻率容差 | 負載電容 | 工作溫度 |
| FC5BACBEI11.0-T1 | Fox 晶振 | C5BA | 11 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI12.0-T1 | Fox 晶振 | C5BA | 12 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI13.0-T1 | Fox 晶振 | C5BA | 13 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI14.0-T1 | Fox 晶振 | C5BA | 14 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI15.0-T1 | Fox 晶振 | C5BA | 15 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI16.0-T1 | Fox 晶振 | C5BA | 16 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI17.0-T1 | Fox 晶振 | C5BA | 17 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI18.0-T1 | Fox 晶振 | C5BA | 18 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI19.0-T1 | Fox 晶振 | C5BA | 19 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI20.0-T1 | Fox 晶振 | C5BA | 20 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI21.0-T1 | Fox 晶振 | C5BA | 21 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI22.0-T1 | Fox 晶振 | C5BA | 22 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI23.0-T1 | Fox 晶振 | C5BA | 23 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI24.0-T1 | Fox 晶振 | C5BA | 24 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI25.0-T1 | Fox 晶振 | C5BA | 25 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI26.0-T1 | Fox 晶振 | C5BA | 26 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI27.0-T1 | Fox 晶振 | C5BA | 27 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI28.0-T1 | Fox 晶振 | C5BA | 28 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI29.0-T1 | Fox 晶振 | C5BA | 29 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI30.0-T1 | Fox 晶振 | C5BA | 30 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI31.0-T1 | Fox 晶振 | C5BA | 31 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI32.0-T1 | Fox 晶振 | C5BA | 32 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI33.0-T1 | Fox 晶振 | C5BA | 33 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI34.0-T1 | Fox 晶振 | C5BA | 34 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI35.0-T1 | Fox 晶振 | C5BA | 35 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI36.0-T1 | Fox 晶振 | C5BA | 36 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI37.0-T1 | Fox 晶振 | C5BA | 37 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI38.0-T1 | Fox 晶振 | C5BA | 38 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI39.0-T1 | Fox 晶振 | C5BA | 39 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACBEI40.0-T1 | Fox 晶振 | C5BA | 40 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC5BACALI12.0-T1 | Fox 晶振 | C5BA | 12 MHz | ±100ppm | ±30ppm | 18pF | -40°C ~ 125°C |
| FC5BACAGI12.0-T1 | Fox 晶振 | C5BA | 12 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
.jpg)
.jpg)
